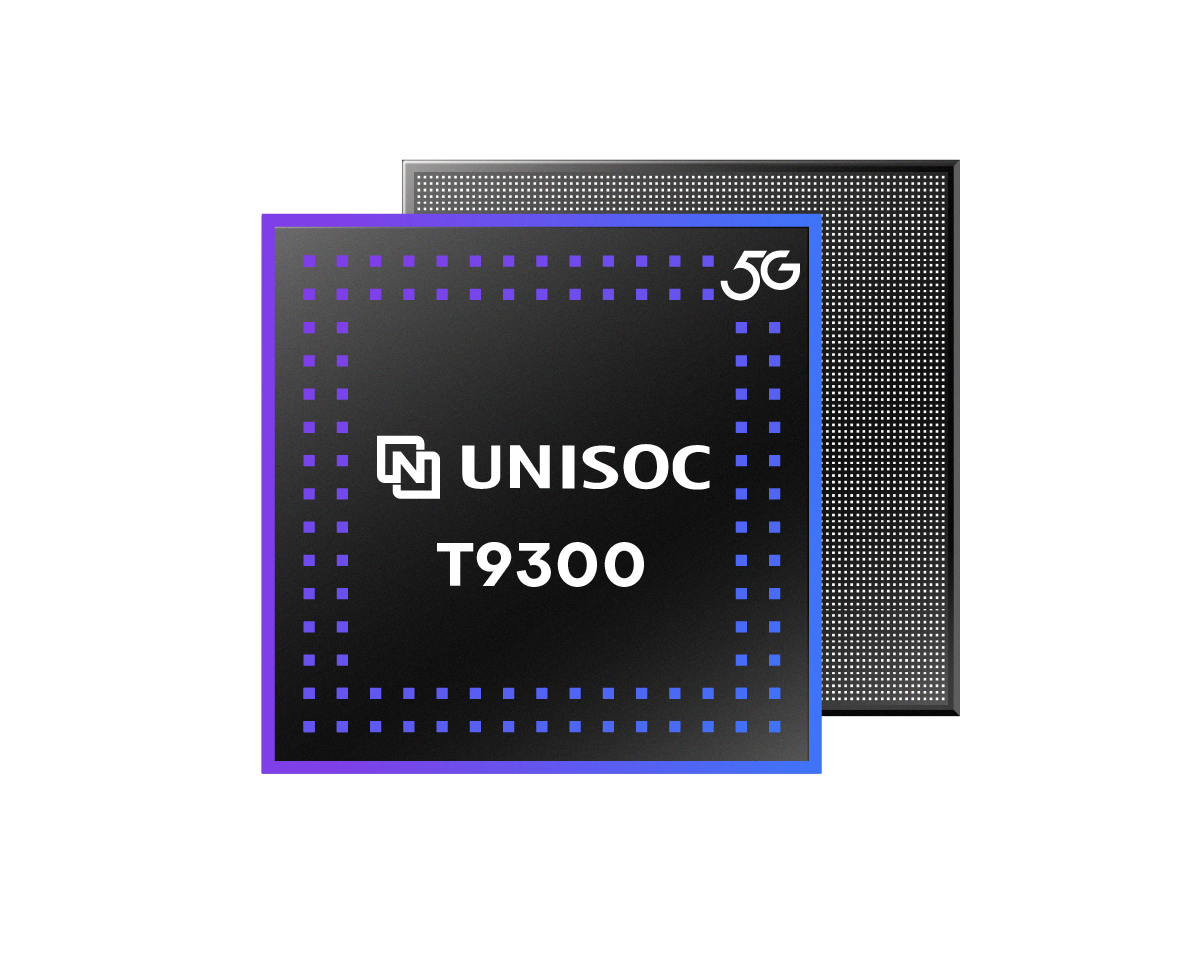

T9300

A high-performance 5G SoC for advanced imaging and gaming

T9300 is a high-performance 5G SoC for advanced imaging and gaming. It supports dual 5G SIM standby and Android 16. Powered by the 7th-gen Vivimagic Image Engine with 200MP camera support, it also features a 144Hz high-refresh display, HiFi-grade audio quality, and the UNISOC Miracle Gaming Engine. It achieves an AnTuTu V10 benchmark score of 550,000. Integrating 5G NR NTN satellite communication and 5G MBS broadcast capabilities, it delivers an immersive and powerful 5G experience for users.

Product Features
Performance

6nm Octa-core CPU architecture with A78 performance cores, up to 2.4GHz; 38% better energy efficiency than the previous generation.

Mali-G57 dual-core GPU, UFS 2.2 storage, and LPDDR4X RAM;

It scores 550,000 on AnTuTu V10.

Connectivity

Supports 3GPP R17, integrated NR NTN satellite communication, and 5G MBS broadcasting.

Enhanced all-scenario coverage and smart network switching; 20% lower power consumption in typical 5G scenarios.

Multi-mode 2G‒5G full network support, 100MHz 5G NR bandwidth, SA/NSA dual-mode, dual SIM VoNR and VoWiFi.

Imaging

7th-gen Vivimagic engine with upgraded specs: 4-core ISP supports up to 200MP, 32MP@25fps ZSL, 20M+20M dual-camera.

Hardware multi-frame and temporal noise reduction for clearer images.

Advanced 3A 5.0 algorithms for better brightness, focus, and dynamic range via XTM3.0.

New multi-frame RAW Super Night XDR and low-light performance.

Refined smart portrait segmentation and depth estimation for superior portrait shots.

Next-gen HDR for improved dynamic range, contrast, and faster performance.

Audio

Calls: Smart noise suppression (ECNS 1.0) and Echo Cancellation 3.0.

Playback: Stereo enhancement and Spatial Audio 3.0.

Recording: 2‒3 MIC AudioZoom 3.0 and AudioFocus 1.0.

Voice Wakeup: Dedicated VTS ADC with seamless sleep-to-wake transitions, customizable wake words, and voiceprint recognition.

AudioCodec performance greatly improved, Hi-res certified audio with HiFi4 codec, 3dB SNR/THD advantage over competitors; Delivering Hi-Fi sound with a dedicated HiFi4 DSP.

DSP software architecture supports customization.

Display

FHD+/144Hz,1.5K/90Hz, HDR10+, Netflix certification.

VideoPQ, VRR, and blue-light/sunlight/nightlight eye protection modes.

Gaming

UNISOC Miracle Gaming engine for high frame rates and stability with optimized networking.

Enhanced voice clarity in weak networks.

Image quality enhancements, Super HDR visuals, and game super resolution.

AI

AI SDK enabling flexible deployment and heterogeneous computing.

Supports AI creation, intent recognition, summarization, and image search — delivering intelligent proactivity and doubled efficiency.

Product Parameters
Processor
CPU

2×A78@2.4GHz + 6×A55@2.2GHz

Max CPU Frequency

2.4GHz

Cores

Octa

process

6nm

Graphics
GPU

Arm Mali G57 MC2 @1.1G

Display Resolution

FHD+@144Hz 1.5K@90Hz

Video Decode

4K @30fps

Video Encode

2K @30fps

Memory
Memory Type

LPDDR4X

Max Memory Size

LPDDR4X 2133MHz

Storage Type

eMMC 5.1+UFS 2.2(2 lane)

Camera
Camera

Up to 200M

normal 32M@25fps ZSL

20M+20M@30fps

MIPI

4CD+4D(2+2)+4D(2+2)

Connectivity
Cellular

NSA/SA/GSM/WCDMA/TDD-LTE/FDD-LTE

Category

NR R17,LTE DL Cat13/UL Cat13

GNSS

GPS+Glonass+Beidou+Galileo, L1+L5(option) Frequency Band

Wi-Fi

802.11 b/g/n/ac/ax(option)

BT

Bluetooth®5.4

FM

Yes

Security
Solution

TEE

Note: The data on this page are from the test data of UNISOC Laboratory. The actual situation may vary slightly depending on the version and test environment.
